LANKELEISI



PANDA

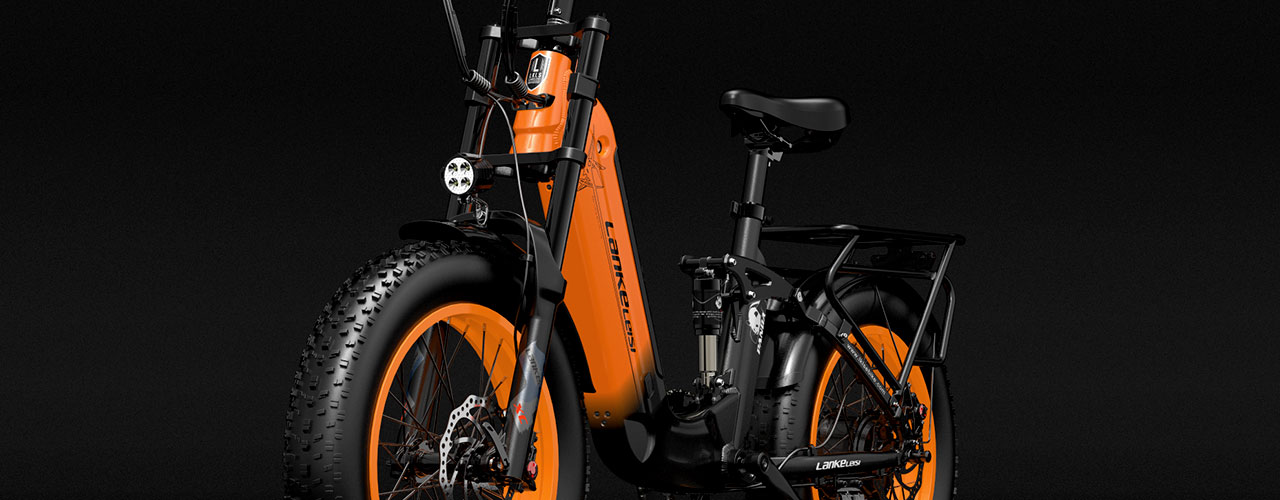

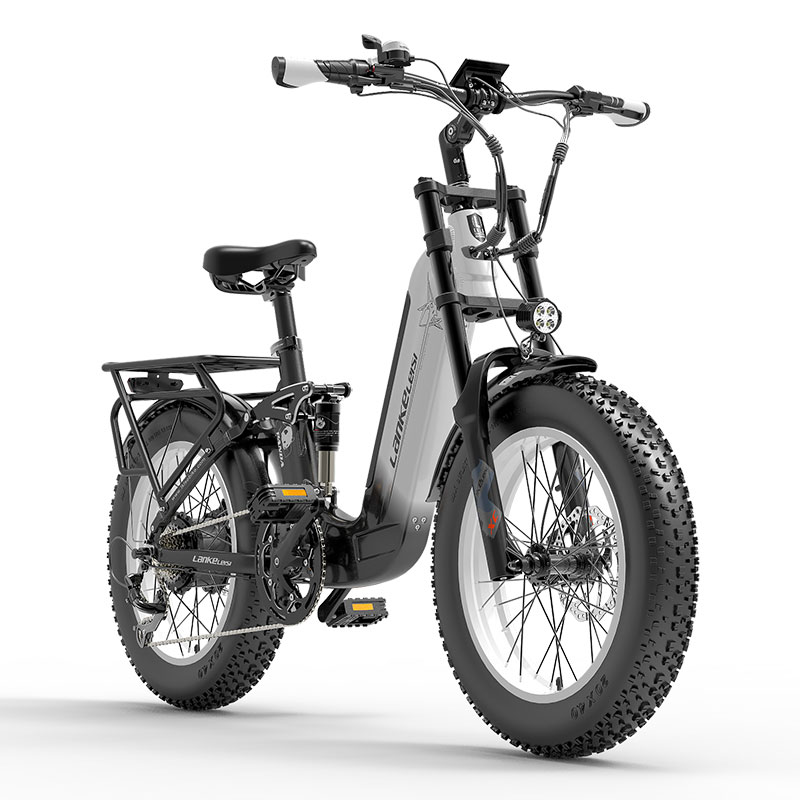

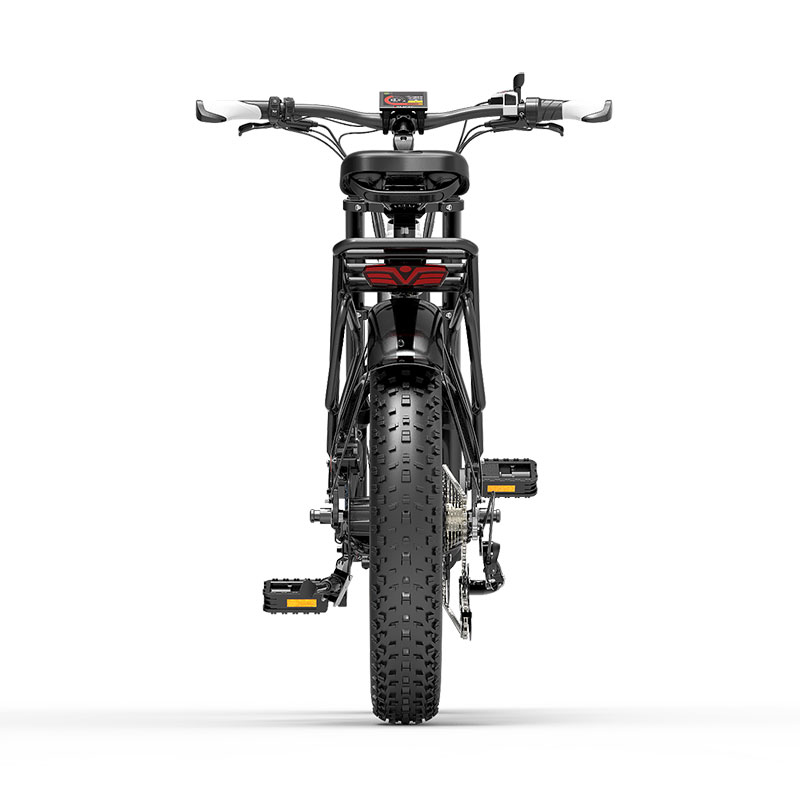

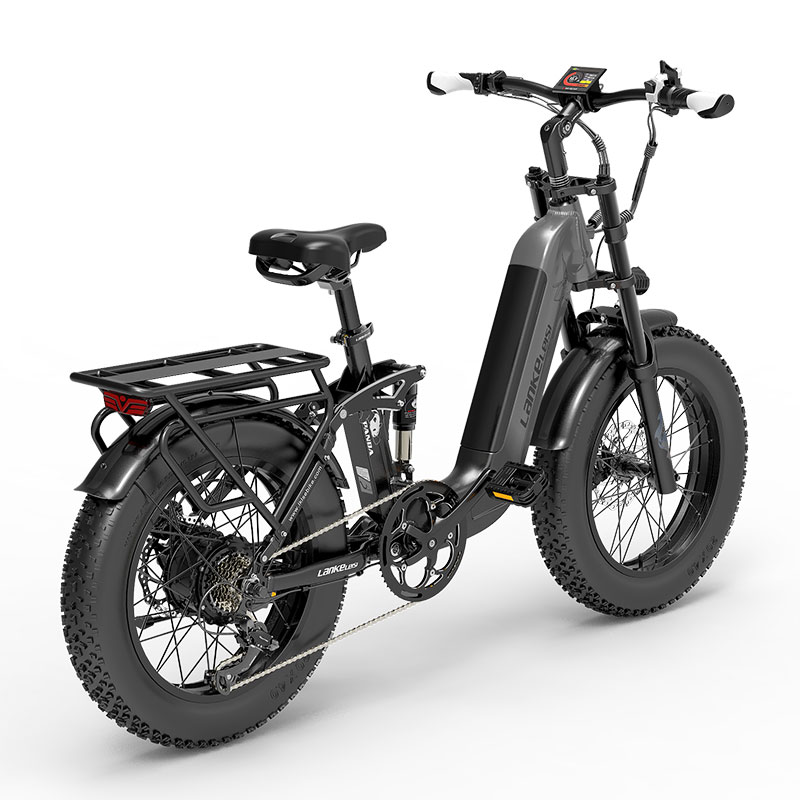

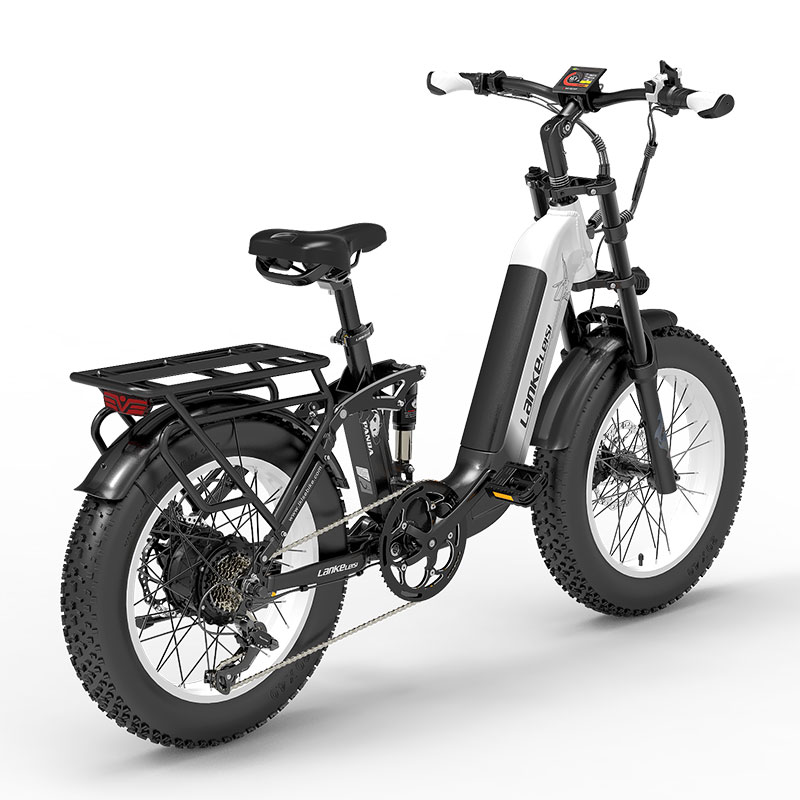

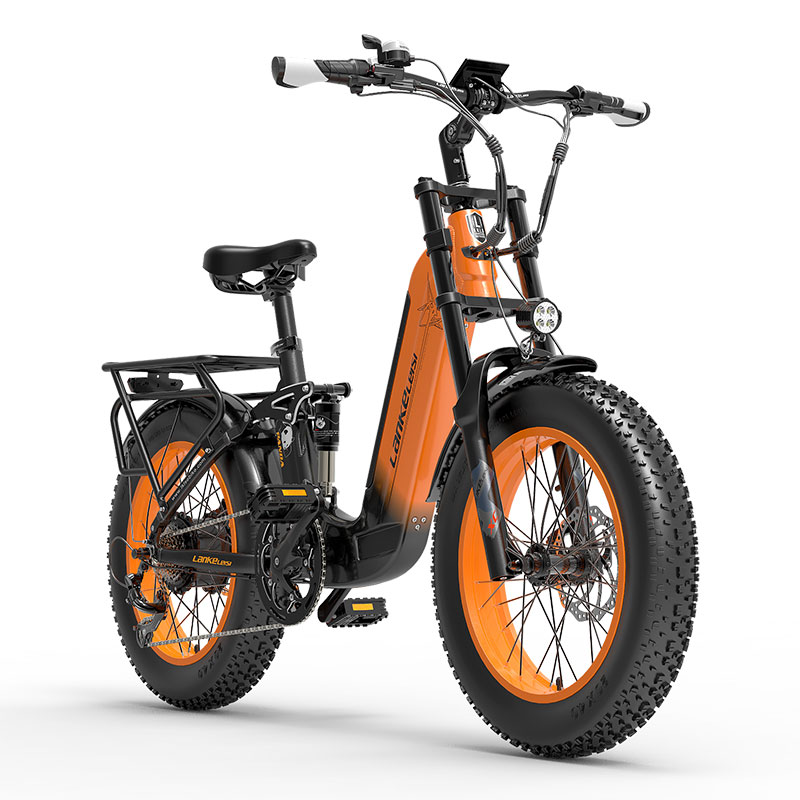

Urban Fat Tire Electric Bike


 The extra diverse, large and full rear rack can carry cargo of all shapes and sizes, easily helping you solve the trouble of going out with heavy equipment. brushless gear hub motor can help you conquer any obstacle in your chosen terrain. All Rounder Covers All Needs


FEATURE OF PRODUCT

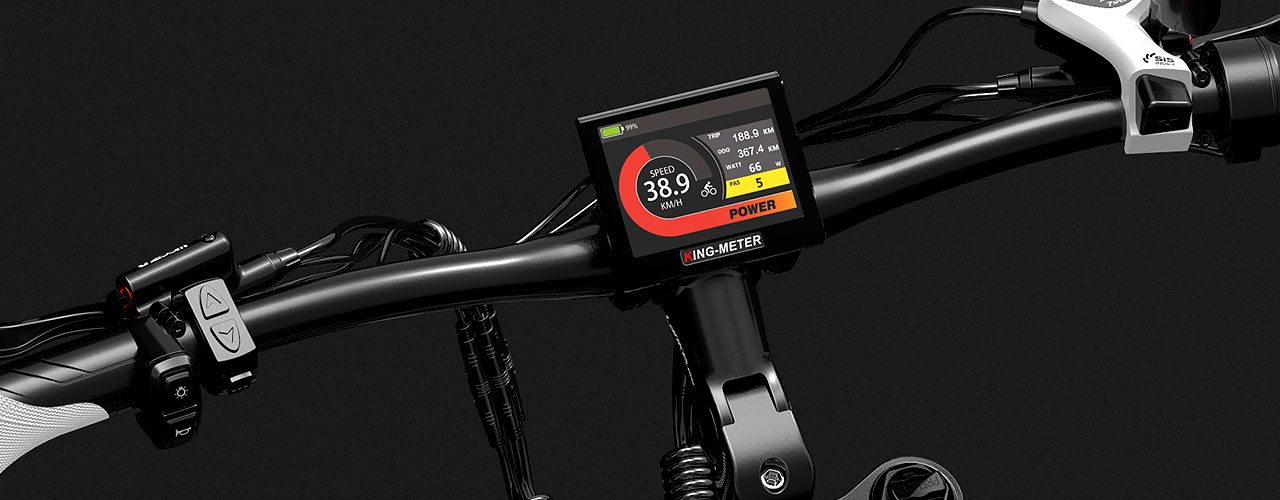

 LCD COLORFUL DISPLAY

PANDA device intelligent LCD instrument, brand new interactive interface, LCD display, integrated gear switch, bicycle data view, power output setting, clear at a glance, ip64 waterproof and dustproof quality is reliable

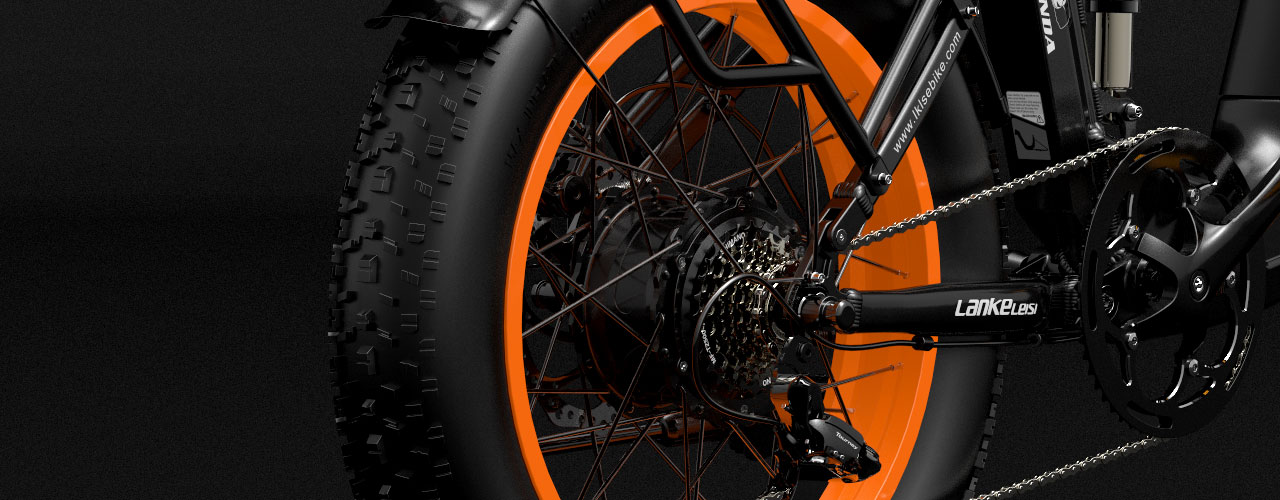

Motor

The 48V1000w high-speed brushless motor is light in weight. Its internal use of star gear design can amplify torque and improve energy efficiency conversion rate. This is reflected in reducing energy consumption and silent energy consumption while increasing cruising range, improving speed performance and climbing performance . Fast power output.


48V 14AH Lithium Battery

48V14ah power supply 18650 lithium battery pack, completely hidden inside the frame, waterproof and dustproof, double protection, strong output, always stable. Pure electric can reach 50KM and auxiliary riding can reach 120KM, providing sufficient power output for riding and free riding.

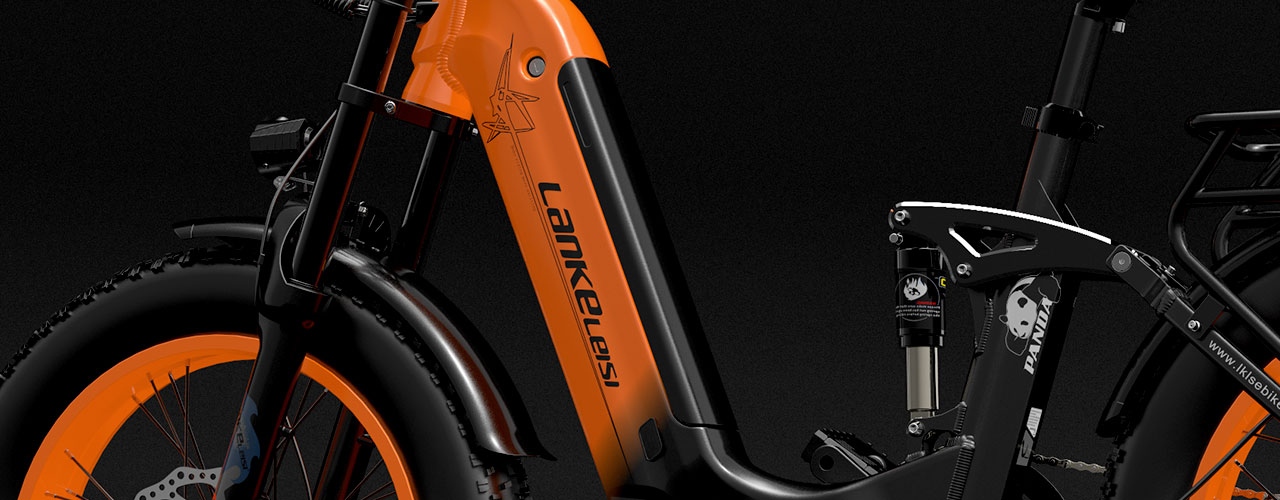

Front Fork & Rear Shock

The dual oil spring suspension and lockable front fork are used to provide the rider with a stronger comfort experience during a collision.The four-bar linkage structure (front fork of the lower frame, front fork of the upper frame, shock absorber joint, 650-pound rear oil spring shock absorber) enhances shock resistance and shock resistance, and loads the frame Increase to 150kg and provide excellent performance.

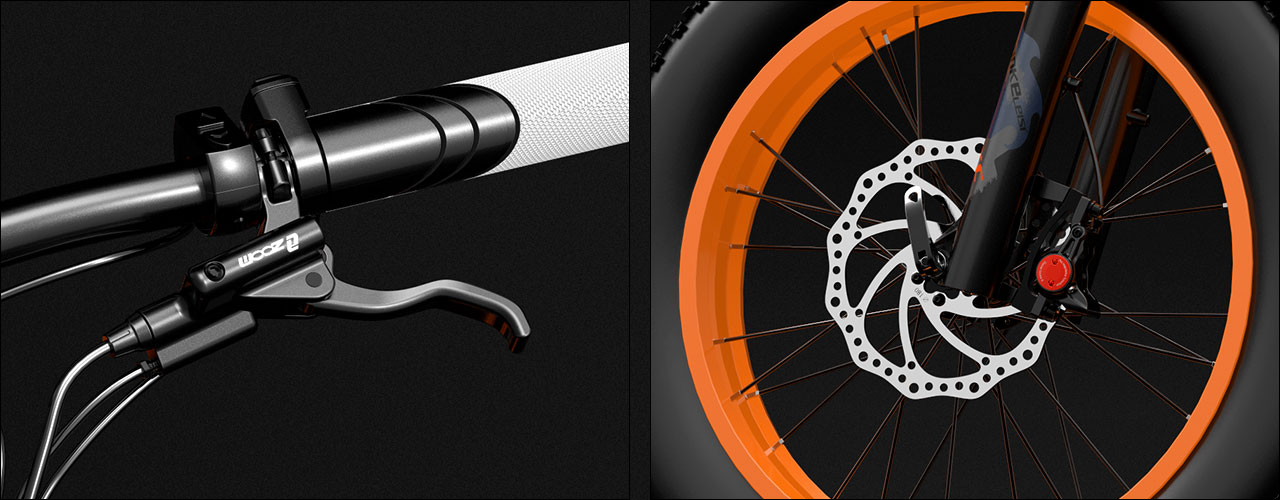

Brake

Taiwan's original ZOOM HB-875 sensor-type dual hydraulic disc brake, CNC anode integrated mold, the brake feel and stability are greatly improved, hydraulic brake lever, integrated hydraulic cylinder, achieve zero cylinder explosion rate, and far exceed In addition to the safety of the front and rear wheels, the rear disc brake weighs only 0.62KG.


Variable Speed

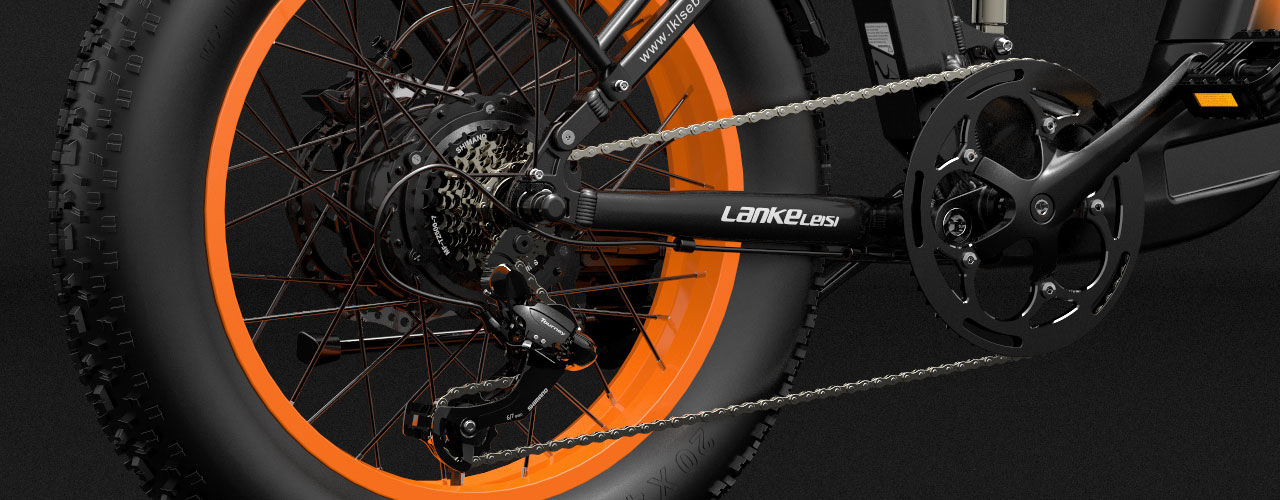

Optional imported Shimano 7-level transmission system, customized aluminum alloy crank 52T large chainring, front 1 rear 7-level classic combination, SIS positioning, durable 7-speed greatly enhances riding fun.

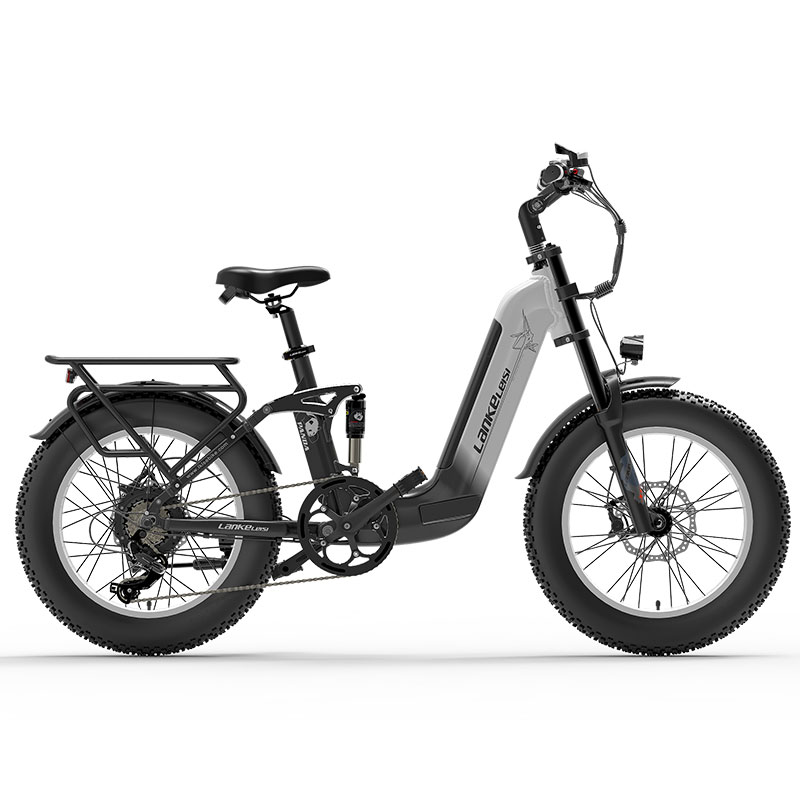

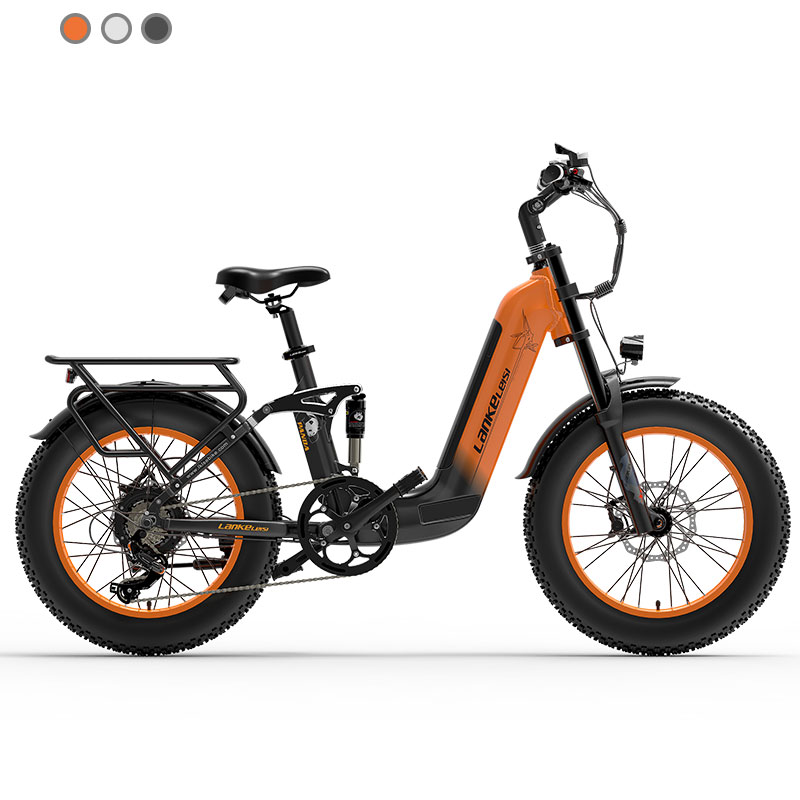

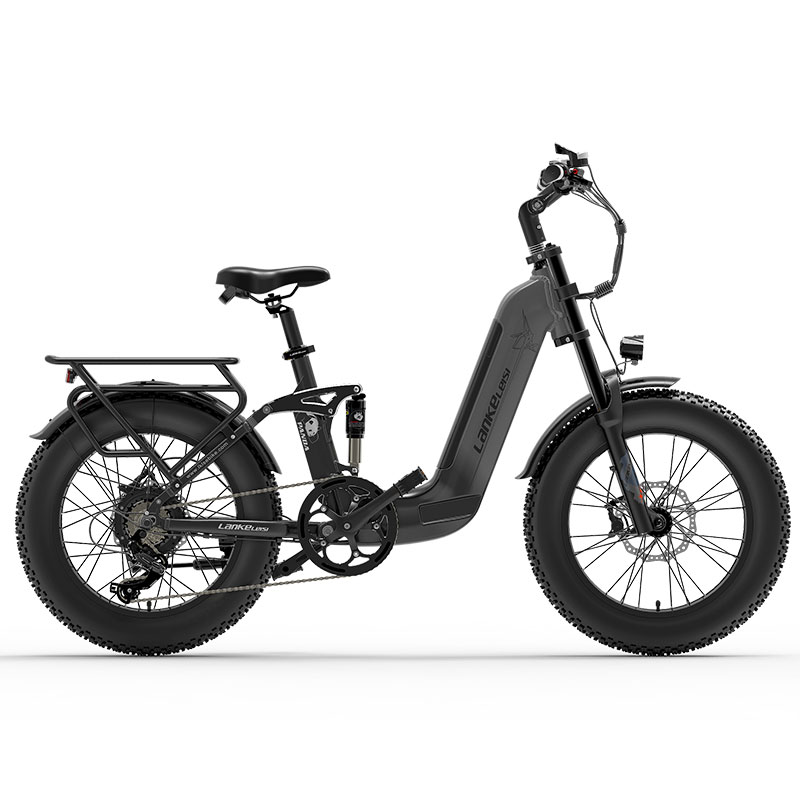

This is a step-through electric bicycle that’s ideal for shorter riders and those with mobility limitations to get on and off the bike easier.



ProductSpecifications



Electronic control system
Mechanical configuration
Battery
48V14AH Li-ion batteryfront forkFront and rear oil spring suspension
motor48V1000W rear brushless motorvariable speedShimano TX50-7 thumb shifter / TY300 rear derailleur
monitorMultifunctional color LCD displayBrake systemZOOM H875 power-off hydraulic disc brake
controllervector controllertirerubber tires
headlightHigh Brightness LED Lightshandlebar31.8 aluminum alloy forged handlebar
power assist sensor12-point speed sensor aidseat postHeight-adjustable seat post
charger3A smart charger (customized according to country)seatPremium sports seats
linePlug type waterproof cablecranksetAluminum alloy crank 52T crankset
Product performanceSpecification

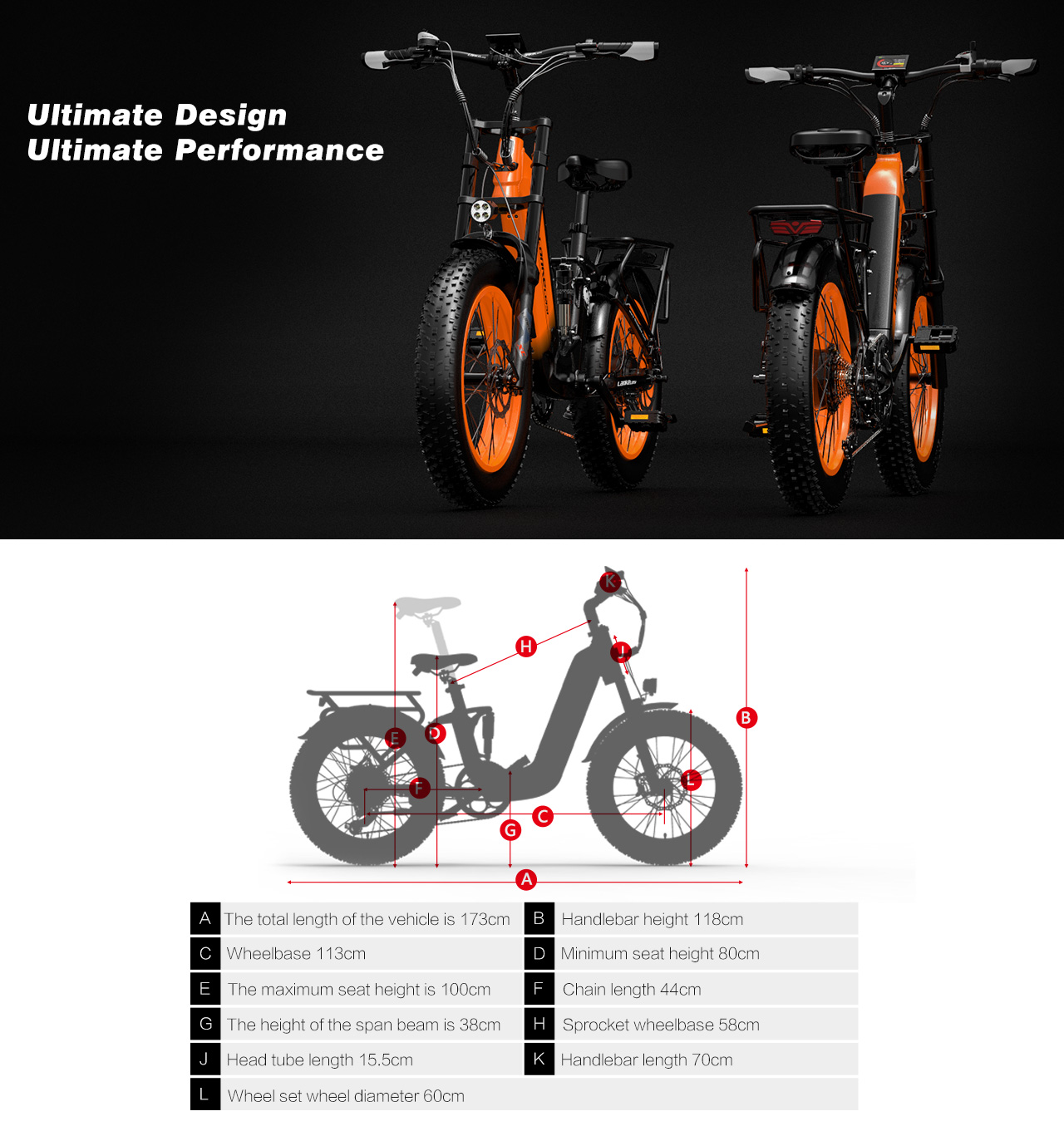

Pure electric mileage50-60KMVehicle size173cm *118cm* 80~100cm
Auxiliary mileage100-120KMframe20" 6061 aluminum alloy four-bar soft tailstock
speed33~42KM/Htire size20*4.0
charging time5-6Hweight30KG
mode5+1 assist mode, cruise controlload150~200KG
otherCustomizable battery capacity, motor power





ProductSpecifications



Electronic control system
Mechanical configuration
Battery
48V14AH Li-ion batteryfront forkFront and rear oil spring suspension
motor48V1000W rear brushless motorvariable speedShimano TX50-7 thumb shifter / TY300 rear derailleur
monitorMultifunctional color LCD displayBrake systemZOOM H875 power-off hydraulic disc brake
controllervector controllertirerubber tires
headlightHigh Brightness LED Lightshandlebar31.8 aluminum alloy forged handlebar
power assist sensor12-point speed sensor aidseat postHeight-adjustable seat post
charger3A smart charger (customized according to country)seatPremium sports seats
linePlug type waterproof cablecranksetAluminum alloy crank 52T crankset
Product performanceSpecification
Pure electric mileage50-60KMVehicle size173cm *118cm* 80~100cm
Auxiliary mileage100-120KMframe20" 6061 aluminum alloy four-bar soft tailstock
speed33~42KM/Htire size20*4.0
charging time5-6Hweight30KG
mode5+1 assist mode, cruise controlload150~200KG
otherCustomizable battery capacity, motor power
