LANKELEISI

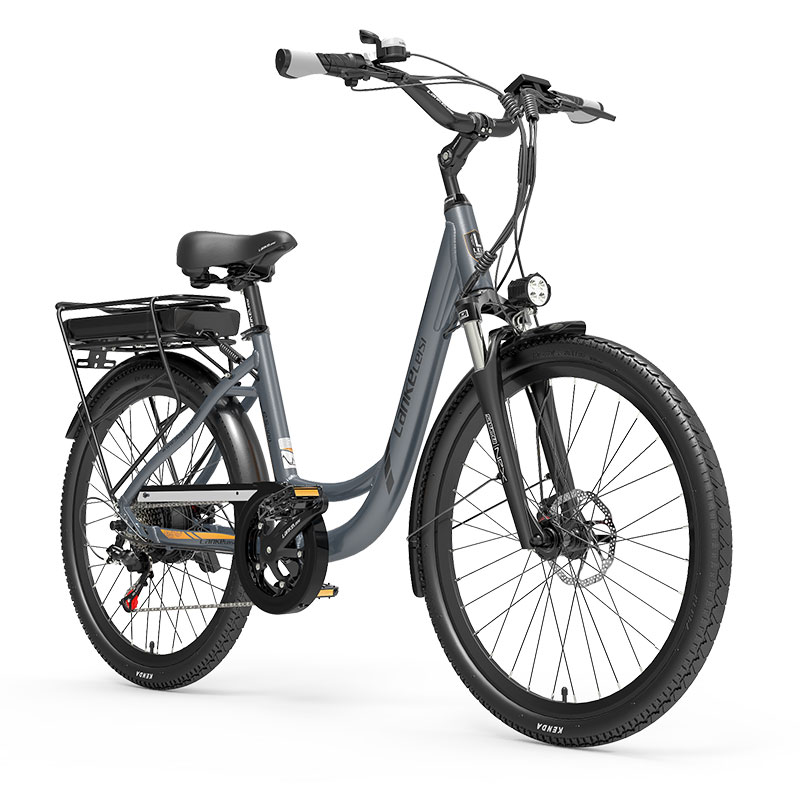

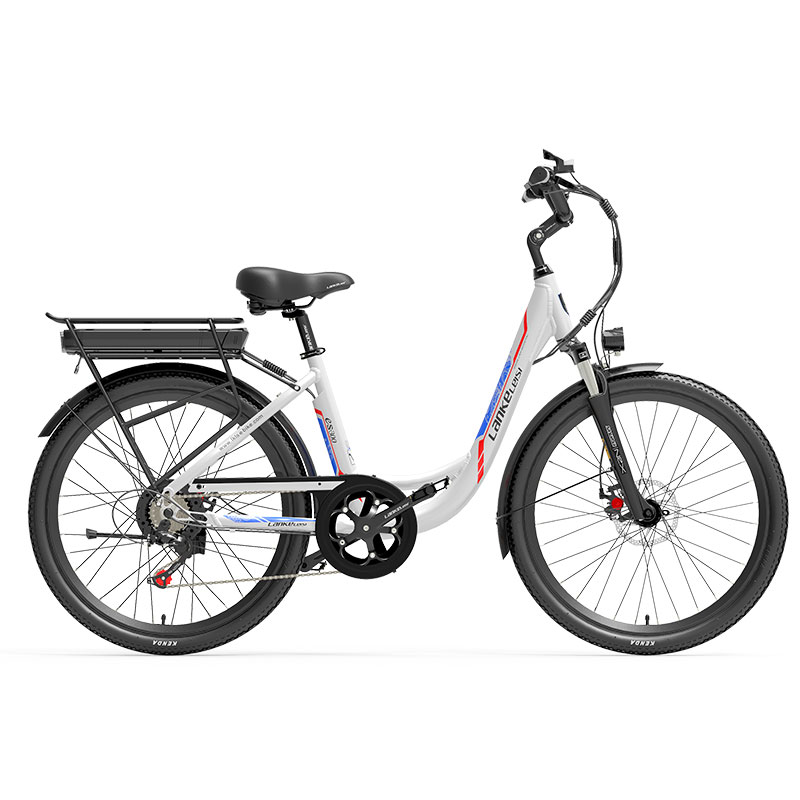

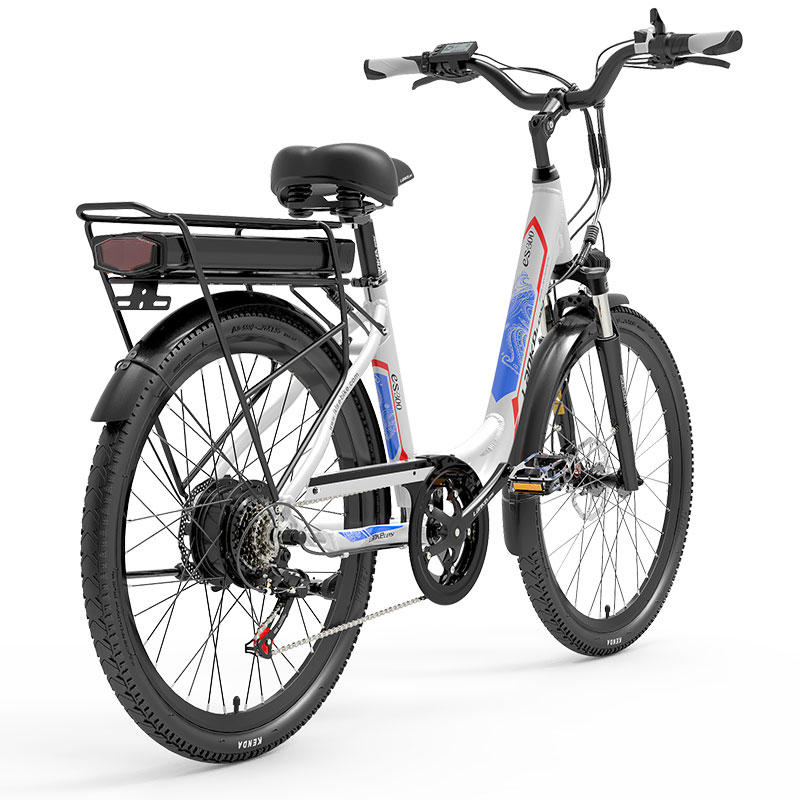

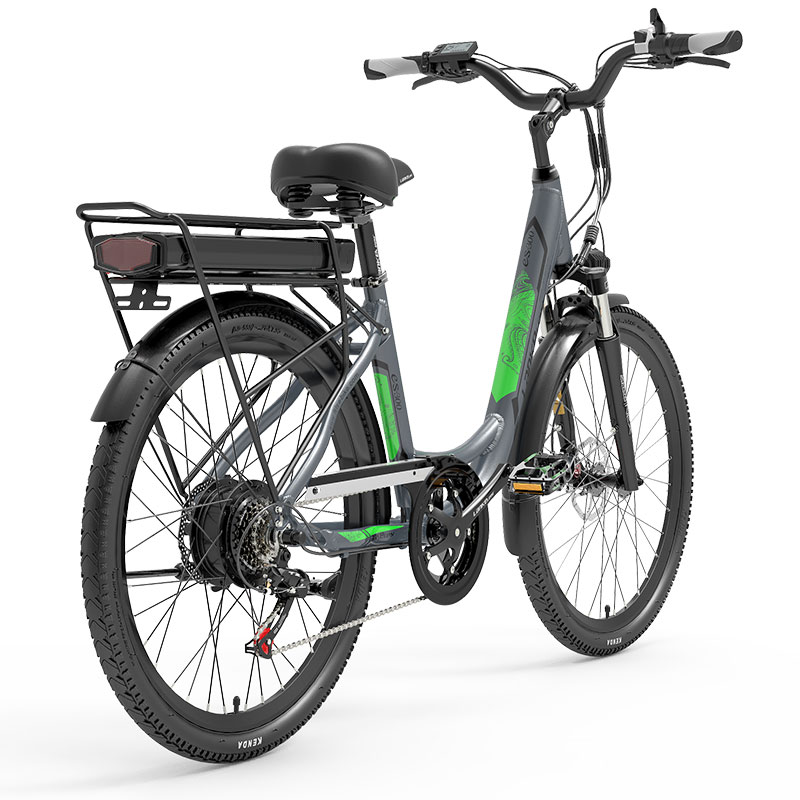

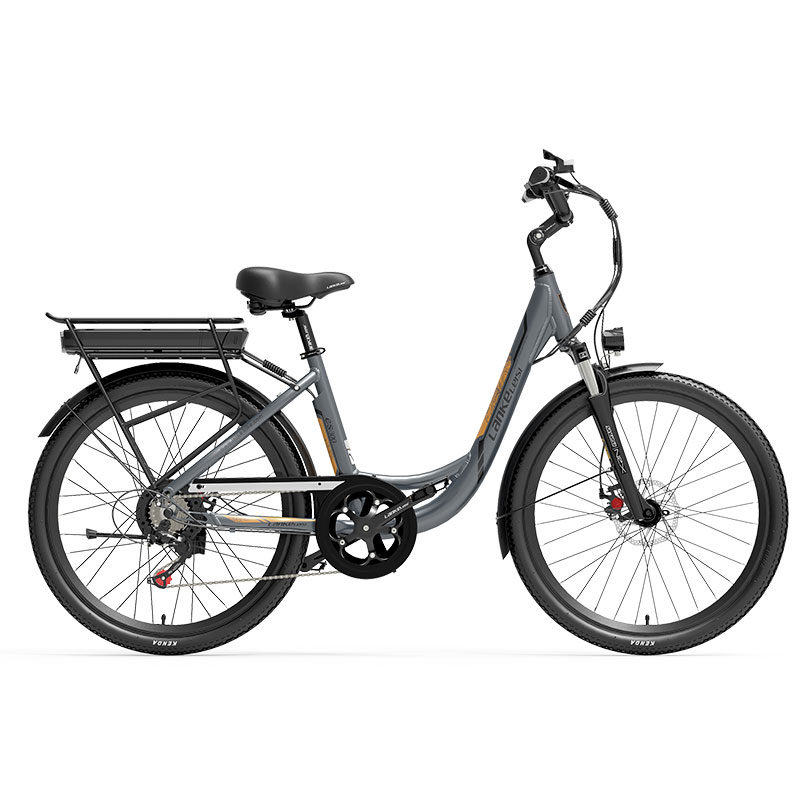

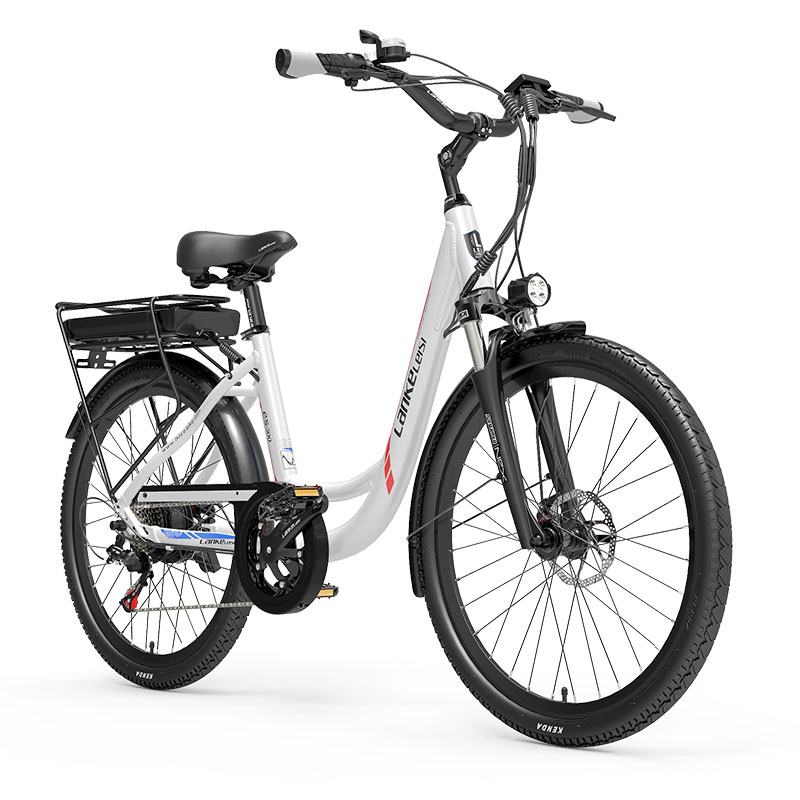

ES300

Urban Electric Bike

Vibrant youthful, fashionable and trendy, ES300, after retaining the existing product features, injects youthful and fashionable label elements in the color matching and design link, and enjoys riding while riding ES300, showing the life proposition of the young age

Previous : XT600

Next : X2000PLUS

Overview

Specification

FEATURE OF PRODUCT

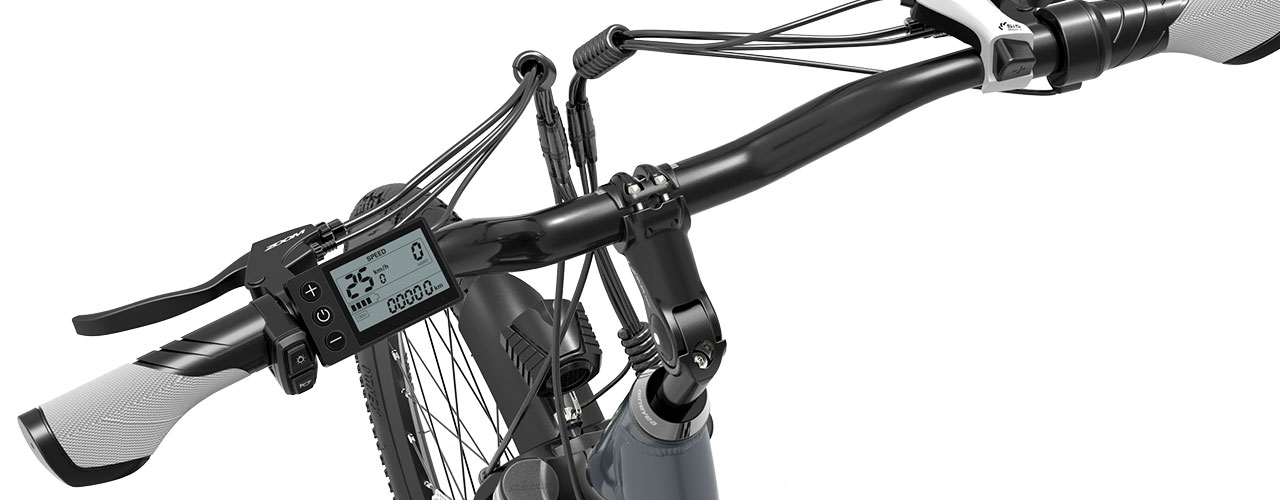

Backlit LCD Display

ES300 device intelligent LCD instrument, brand new interactive interface, LCD display, integrated gear switch, bicycle data view, power output setting, clear at a glance, ip54 waterproof and dustproof quality is reliable

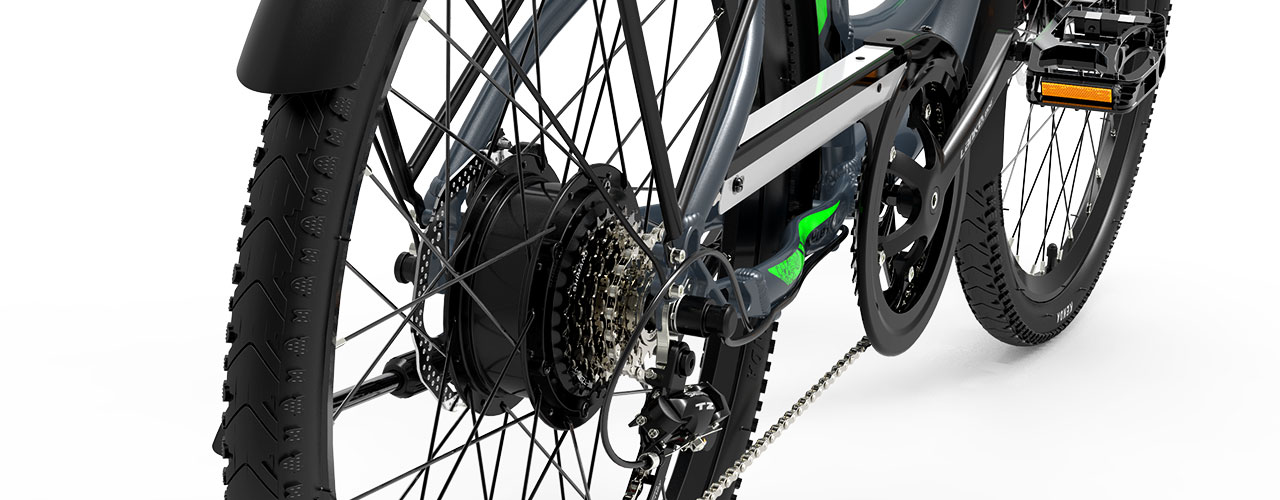

Motor

The 48V500w high-speed brushless motor is light in weight. Its internal use of star gear design can amplify torque and improve energy efficiency conversion rate. This is reflected in reducing energy consumption and silent energy consumption while increasing cruising range, improving speed performance and climbing performance . Fast power output.

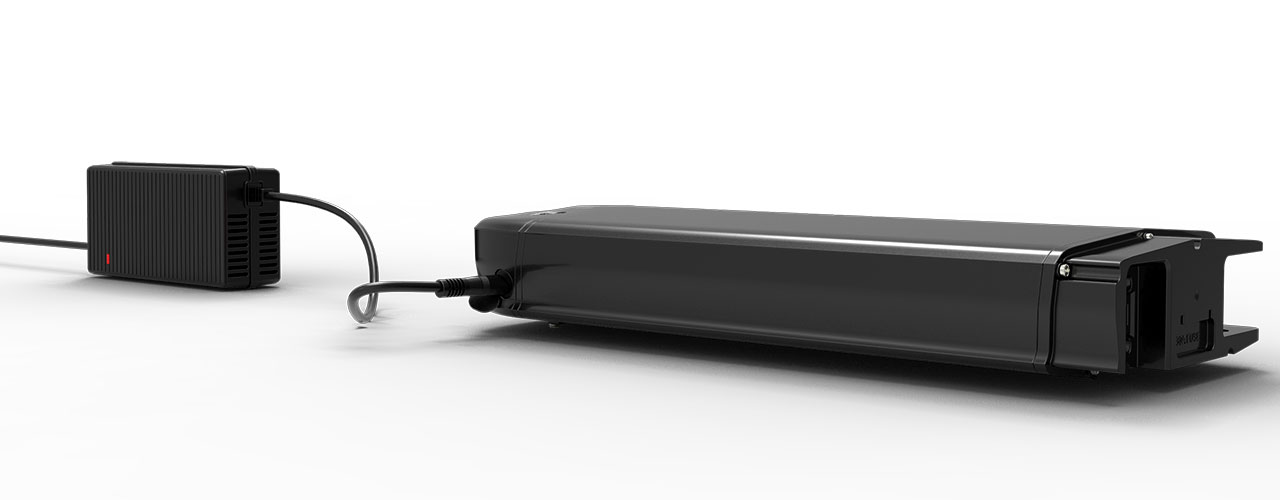

48V 12.8AH Lithium Battery

48V12.8ah power supply 18650 lithium battery, independent rear luggage rack battery pack, waterproof and dustproof, dual protection, strong output, always stable. Pure electric can reach 50KM, and auxiliary riding can reach 120KM, providing sufficient power output for riding and free riding.

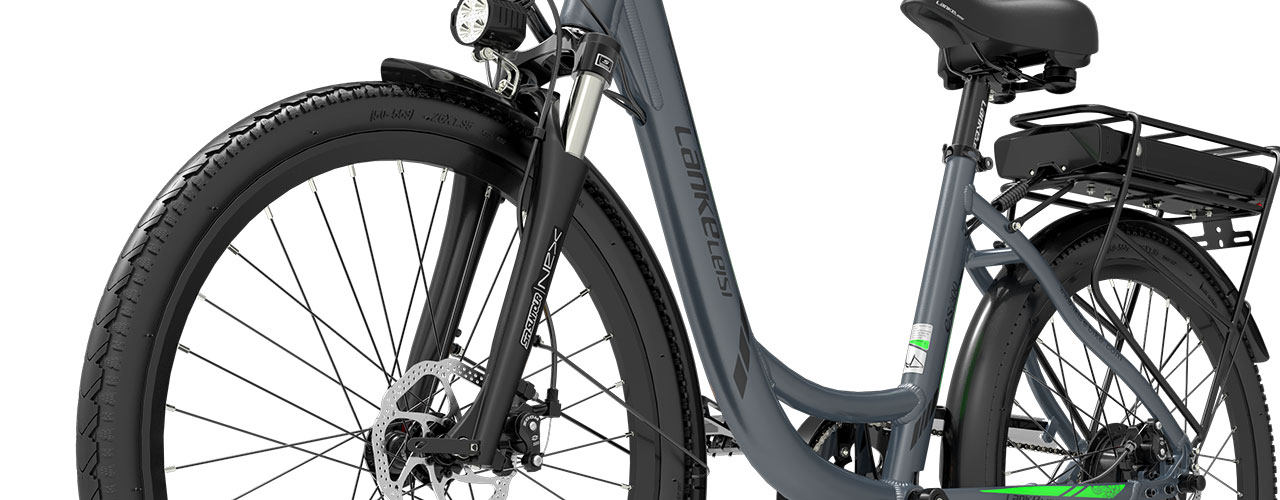

Front Fork

The dual oil spring suspension and lockable front fork are used to provide the rider with a stronger comfort experience in the event of a collision. Wheels with a diameter of 26 inches can easily pass through potholes and speed bumps on muddy roads. The tire width reaches 5 cm, anti-skid and anti-vibration, and the span is larger. Faster speed and less energy.

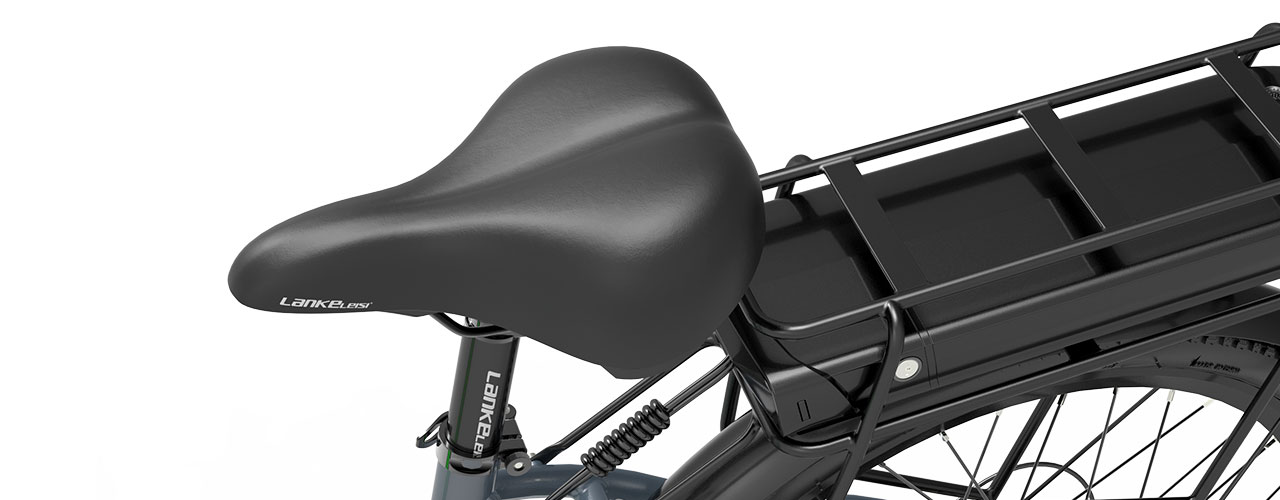

seat

The streamlined widening seat and ergonomic design are both spacious and comfortable. The exercise posture is better and the riding experience is more friendly.

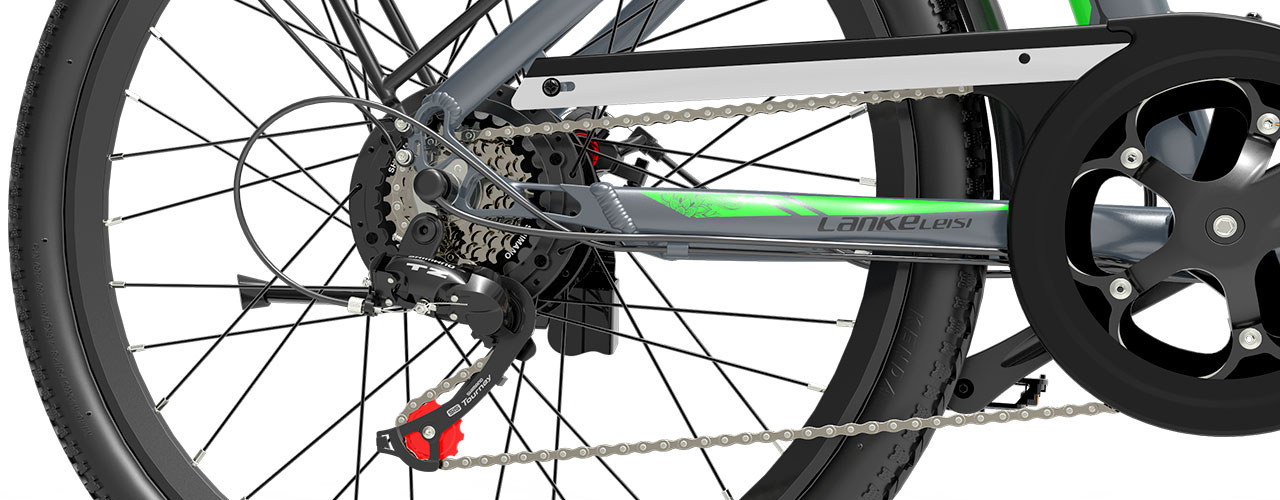

Variable Speed

Optional Shimano 7-speed transmission system, customized aluminum alloy crank 46T sprocket, classic combination of front and rear 1 and rear 7, sis positioning, durability and 7-speed greatly improve the riding pleasure.

ProductSpecifications

Electronic control system		Mechanical configuration
Battery	48V12.8AH Li-ion battery	front fork	SR Suntour front oil spring suspension
motor	48V500W rear brushless motor	variable speed	Shimano TX50-7 finger derailleur & TZ500 rear derailleur
monitor	Multifunctional LCD Display	Brake system	Mechanical disc brake
controller	vector controller	tire	rubber tires
headlight	High Brightness LED Lights	handlebar	31.8 Aluminum Alloy Adjustable Angle/Height Handlebar
power assist sensor	12-point speed sensor aid	seat post	Height-adjustable seat post
charger	3A smart charger (customized according to country)	seat	Comfortable sports seats
line	Plug type waterproof cable	crankset	46T aluminum alloy crank five-claw chainring
Product performance		Specification

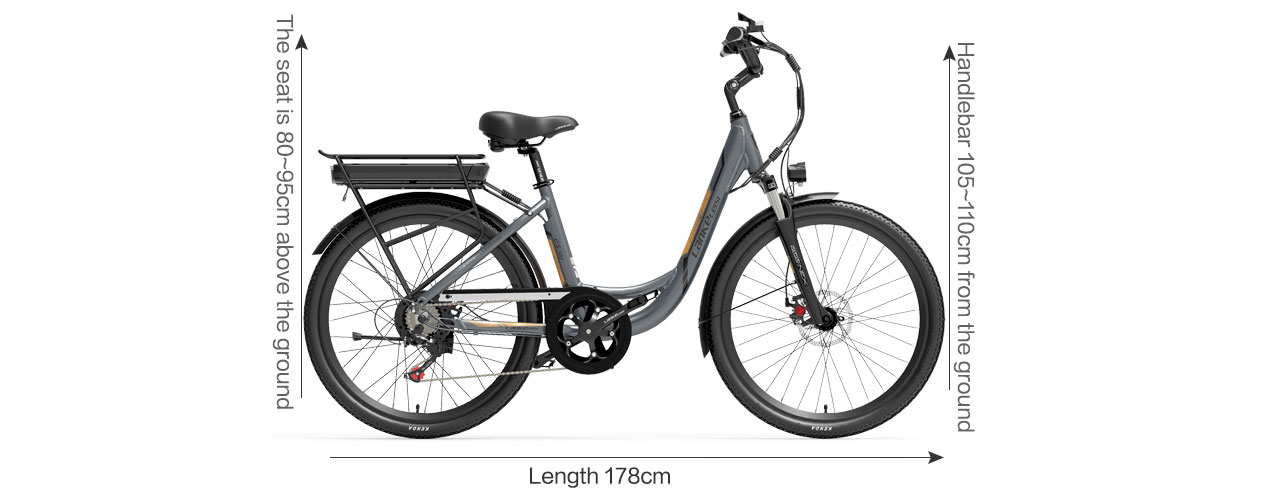

Pure electric mileage	50-60KM	Vehicle size	178CM 105CM 86~96CM
Auxiliary mileage	90-120KM	frame	26" high strength and lightweight aluminum alloy frame
speed	33~35KM/H	tire size	26*1.95
charging time	4-6H	weight	24.5KG
mode	5+1 assist mode, cruise control	load	150~200KG
other	Customizable battery capacity, motor power
