LANKELEISI

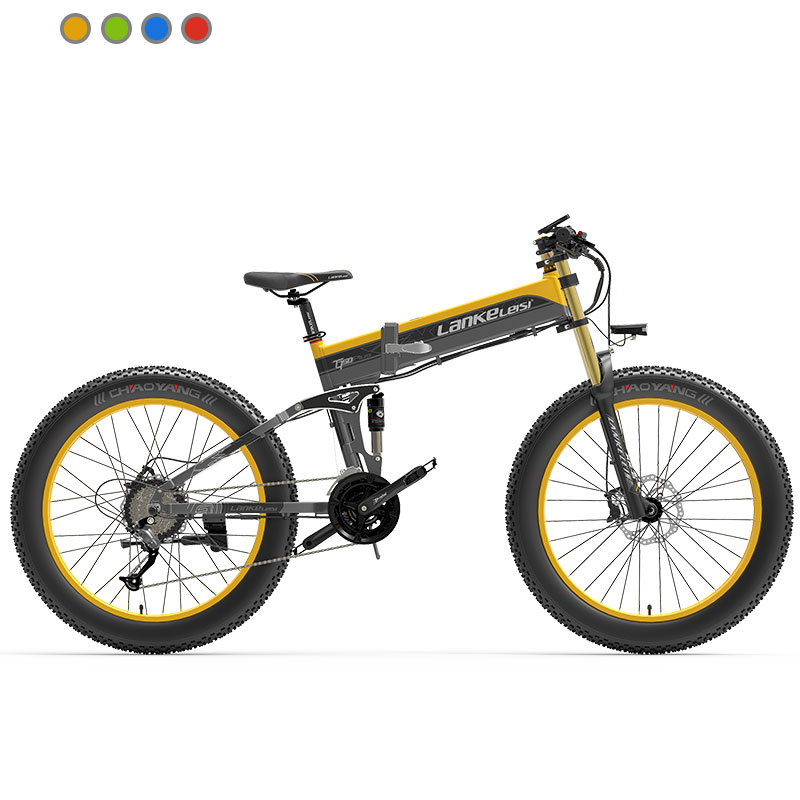

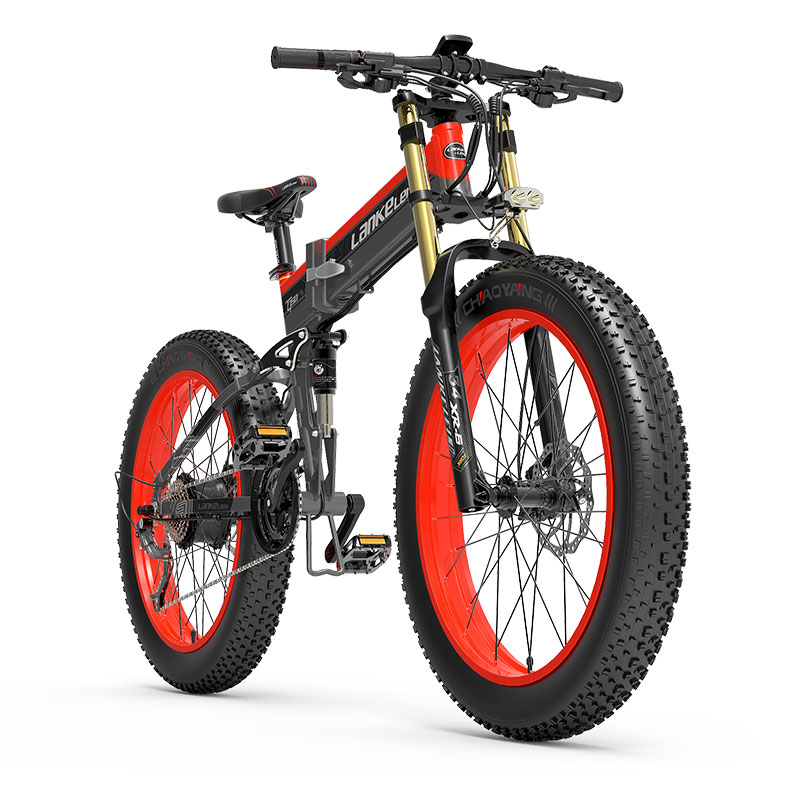

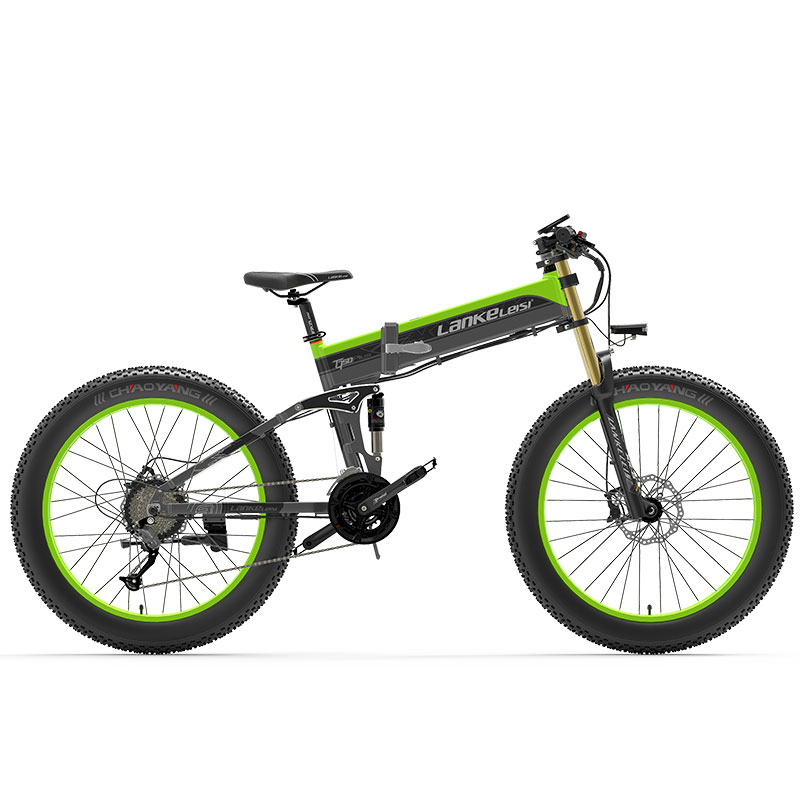

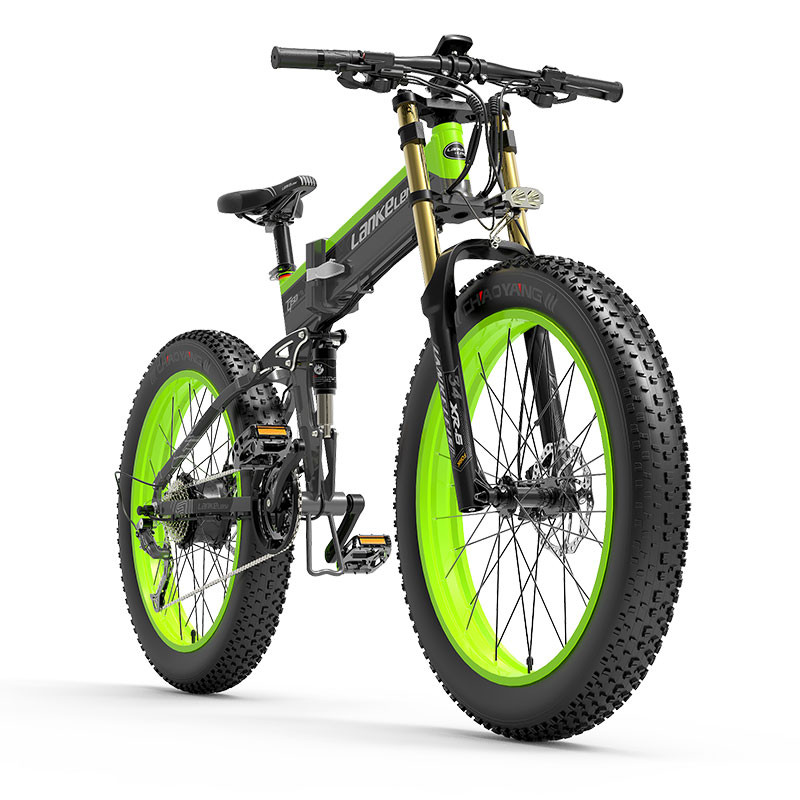

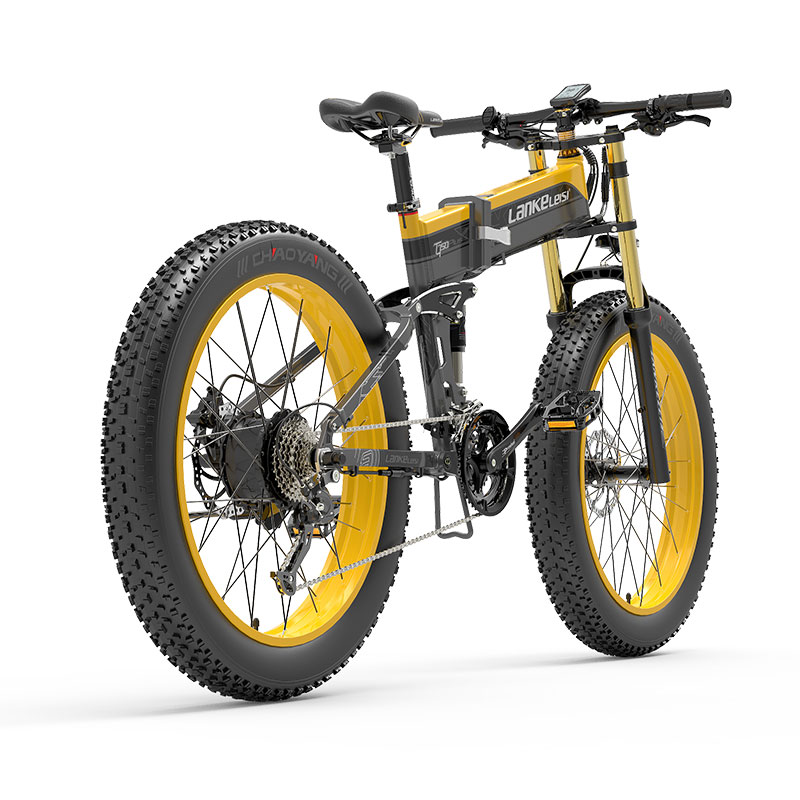

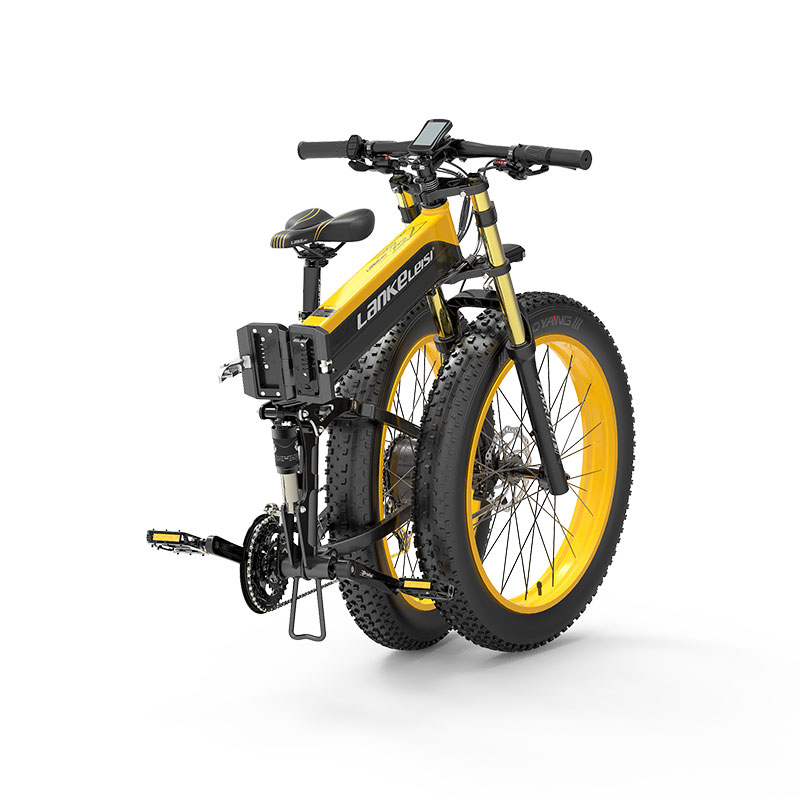

T750PLUS

Off-Road Electric Bikes

Every detail is done with sincerity, and it is suitable for paved roads, mixed roads and undulating wilderness terrain with excellent comfort to meet the needs of holiday leisure, outings, fitness and entertainment.

Previous : G660

Next : T8

Overview

Specification

FEATURE OF PRODUCT

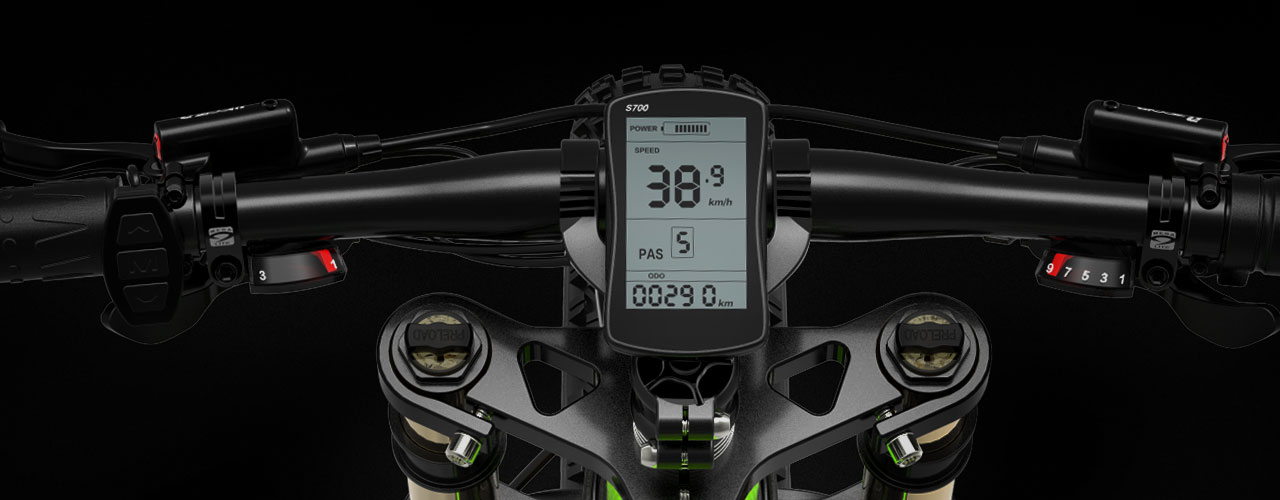

Backlit LCD Display

An intuitive, liquid crystaldisplay shows you your speed, battery charge, pedal assist level, distance traveled and more. Above that it also allows you to control your ebike's class rating, integrated lights, and more!

Motor

The 48V1000w high-speed brushless motor is light in weight. Its internal use of star gear design can amplify torque and improve energy efficiency conversion rate. This is reflected in reducing energy consumption and silent energy consumption while increasing cruising range, improving speed performance and climbing performance . Fast power output.

48V 17.5AH lithium battery

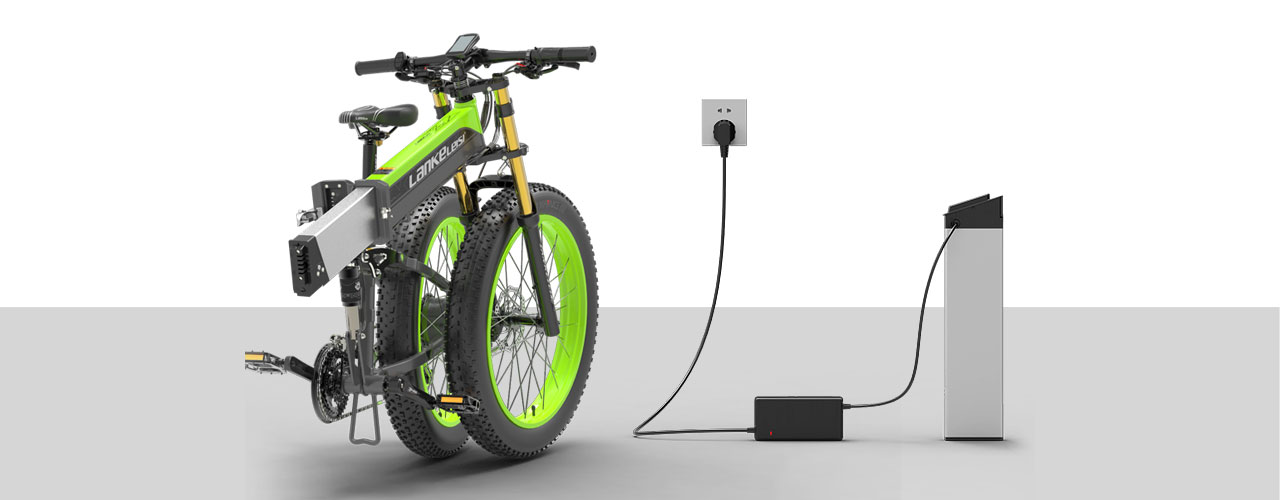

48V17.5ah power supply 18650 lithium battery pack, completely hidden inside the frame, waterproof and dustproof, double protection, strong output, always stable. Pure electric can reach 50KM and auxiliary riding can reach 120KM. It can be directly connected to the charging hole of the vehicle body, and the battery can be removed for charging. It only takes 6-7 hours to fully charge.

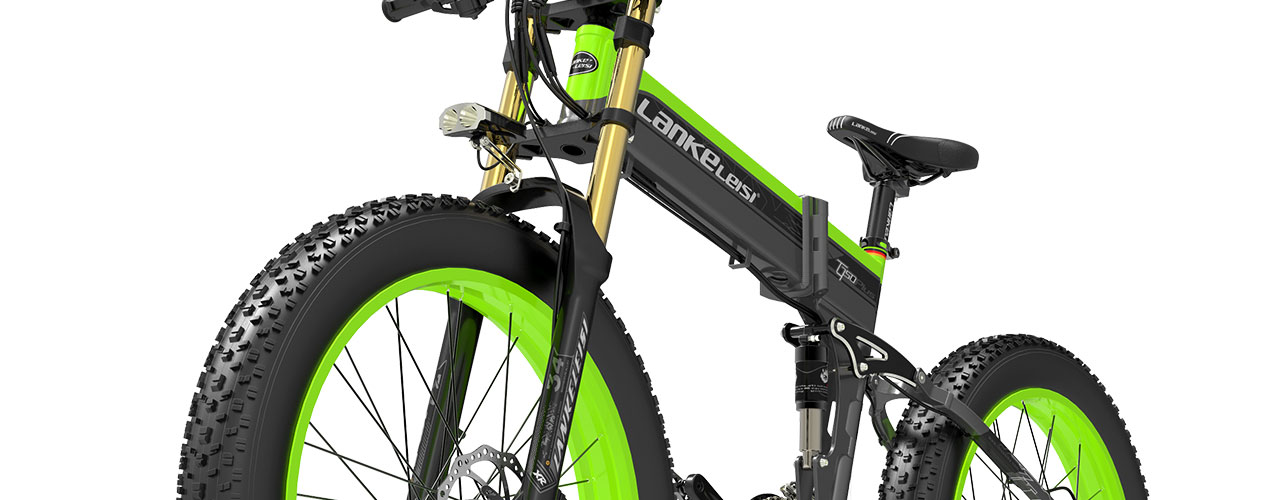

Front fork & rear shock

Large double shoulder oilspring suspension fork，The dual oil spring suspension and lockable front fork are used to provide the rider with a stronger comfort experience during a collision.650-pound rear oil spring shock absorber enhances shock resistance and shock resistance, and loads the frame Increase to 150kg and provide excellent performance.

Brake

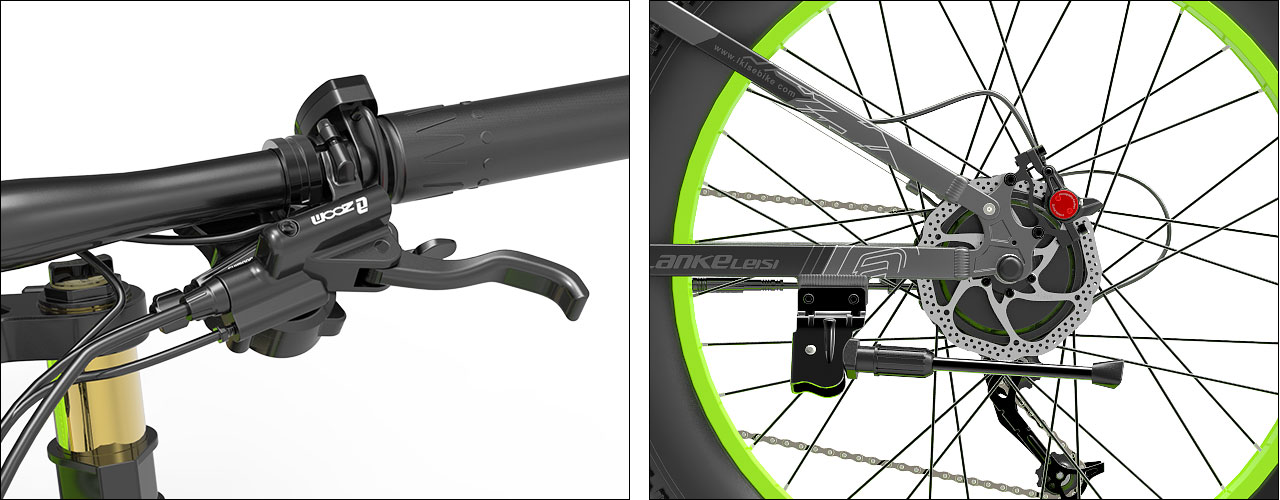

Taiwan's original ZOOM HB-875 sensor-type dual hydraulic disc brake, CNC anode integrated mold, the brake feel and stability are greatly improved, hydraulic brake lever, integrated hydraulic cylinder, achieve zero cylinder explosion rate, and far exceed In addition to the safety of the front and rear wheels, the rear disc brake weighs only 0.62KG.

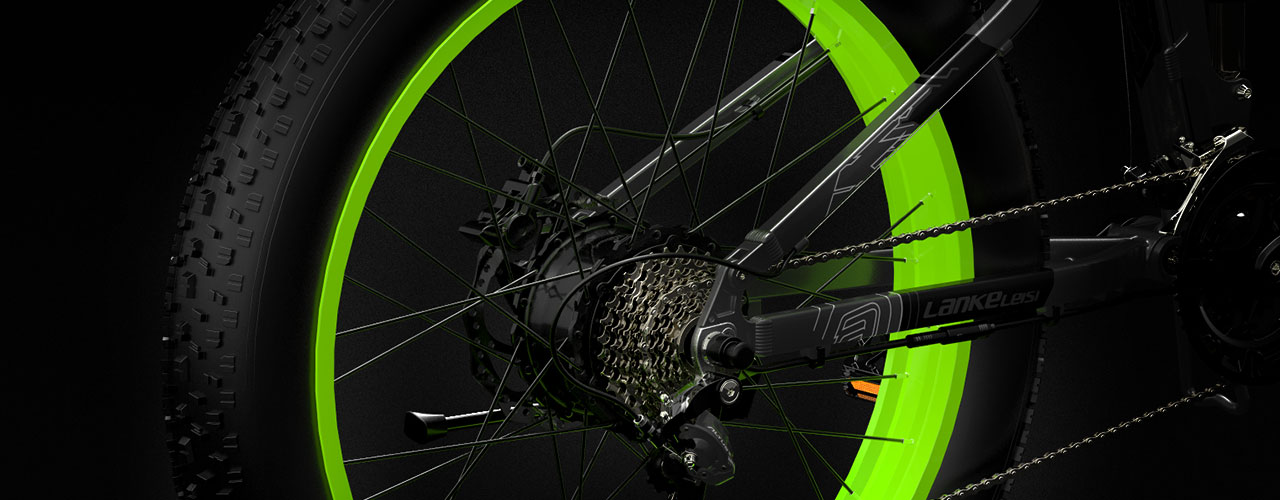

Variable speed

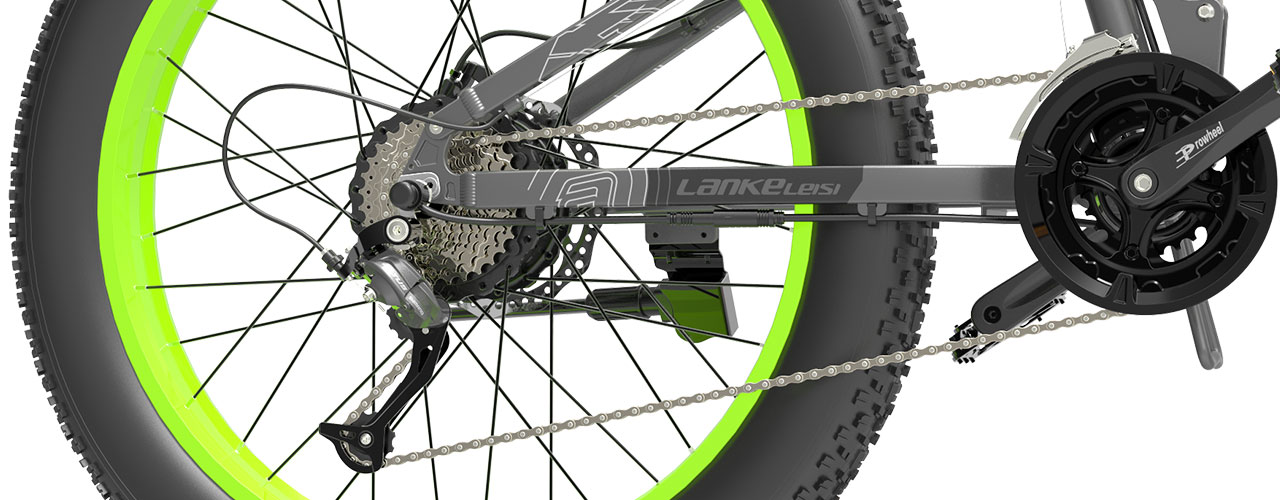

27-speed transmission system，Shimano imported from Japan，customized aluminum alloy crank 3-level chainring, classic combination of front 3 and rear 9-levels, sis positioning, durable 27-speed greatly enhances the riding pleasure.

Indulge in the jungle on the top of a thousand miles of mountains and unleash the passion of life, with a front suspension fork, fat tires and excellent handling, with a high-capacity battery and a powerful rear hub motor. Guarantees the most comfortable ride on any terrain you choose

ProductSpecifications

Electronic control system		Mechanical configuration
Battery	48V17.5AH Li-ion battery	front fork	Oil spring suspension large front fork
motor	48V1000W rear brushless motor	variable speed	SHIMANO M370 2010 27S Transmission System
monitor	Multifunctional LCD Display	Brake system	ZOOM hydraulic disc brake system
controller	vector controller	tire	CHAOYANG rubber tires
headlight	High Brightness LED Lights	handlebar	Aluminum alloy ultralight handlebar 31.8
power assist sensor	12-point speed sensor aid	seat post	Height-adjustable seat post
charger	3A smart charger (customized according to country)	seat	Comfortable sports seats
line	Plug type waterproof cable	crankset	Haomeng crank kit
Product performance		Specification

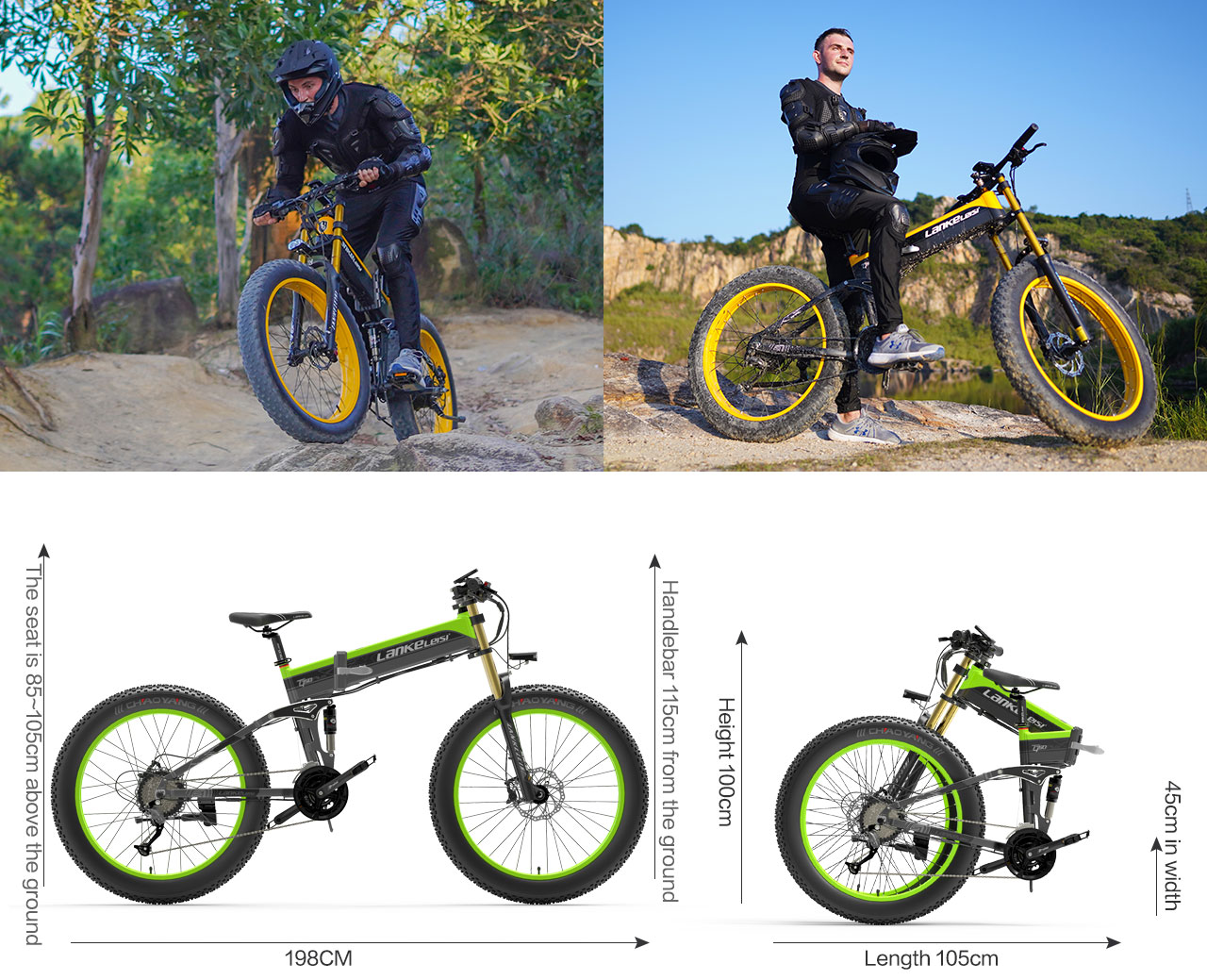

Pure electric mileage	50-60KM	Vehicle size	198CM115CM85*105CM
Auxiliary mileage	100-120KM	frame	26" high strength and lightweight aluminum alloy frame
speed	33~40KM/H	tire size	26*4.0
charging time	5-6H	weight	30KG
mode	5+1 assist mode, cruise control	load	150~200KG
other	Customizable battery capacity, motor power
